Noryl Series

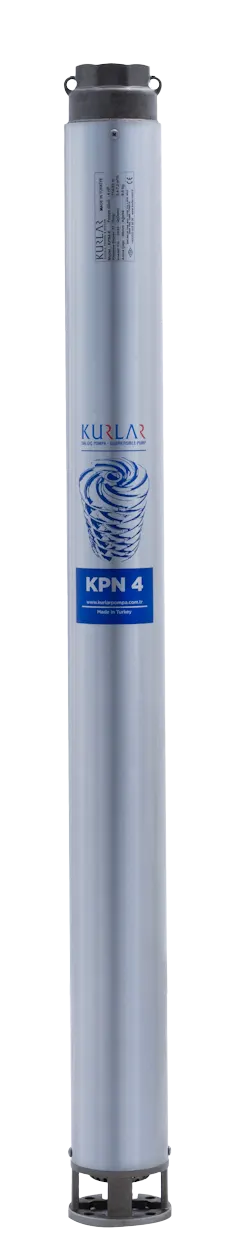

4″ Noryl Submersible Pumps
Model No:KPN4
- Brand
- Kurlar
- Product Type
- Submersible Pump
- Diameter Options
- 4"
4” Kurlar Noryl Submersible Pump impellers and diffusers offer high hydraulic efficiency and performance thanks to their excellent designs.
Product Description
4” Kurlar Noryl Submersible Pump impellers and diffusers offer high hydraulic efficiency and performance thanks to their excellent designs; it also provides excellent protection against sand and abrasive materials thanks to the floating impeller system. The stainless steel strainer prevents particles larger than 50 g/m³ from entering the pump, extending the pump's life. Suitable for horizontal and vertical installation. The discharge chamber connection is suitable for both NPT and BSP and is designed for motor connection according to NEMA standards.
Features
- Long-lasting and reliable use
- High performance operation
- Easy maintenance and practical assembly
- Motor connection according to NEMA standards
- Wear-resistant, water-lubricated bearings
- Design suitable for both horizontal and vertical operation
Technical Specifications
| Maximum Capacity | 24 m³/h |
| Maximum Head | 200m |
| Max Sand Amount | 50g/m³ |
| Max Water Temp | 35°C |
| Max Immersion | 150m |
| Protection Class | IP68 |
| Outlet Connection | 1 1/4" - 2" |
| Impeller Material | Noryl |
| Shaft & Coupling | AISI 304 |
| Diffuser | Noryl |
| Strainer | AISI 304 |
4" KPN Serisi (1-8 m³/h)
| Model | Debi (m³/h) | Basma Yüksekliği (mSS) | Motor (kW) | Çıkış |
|---|---|---|---|---|
| KPN 402/08 | 2 | 45 | 0.37 | 1 1/4" |
| KPN 402/14 | 2 | 80 | 0.55 | 1 1/4" |
| KPN 403/11 | 3 | 65 | 0.75 | 1 1/4" |
| KPN 403/16 | 3 | 95 | 1.1 | 1 1/4" |
| KPN 405/12 | 5 | 72 | 1.5 | 1 1/2" |
| KPN 405/18 | 5 | 108 | 2.2 | 1 1/2" |
| KPN 408/08 | 8 | 48 | 1.5 | 2" |
| KPN 408/15 | 8 | 90 | 3 | 2" |
